示例概述
本文使用示例工作流演示 GitHub Actions 的某些主要 CI 功能。触发此工作流时,它将使用 npm test
的测试组合矩阵来测试代码。

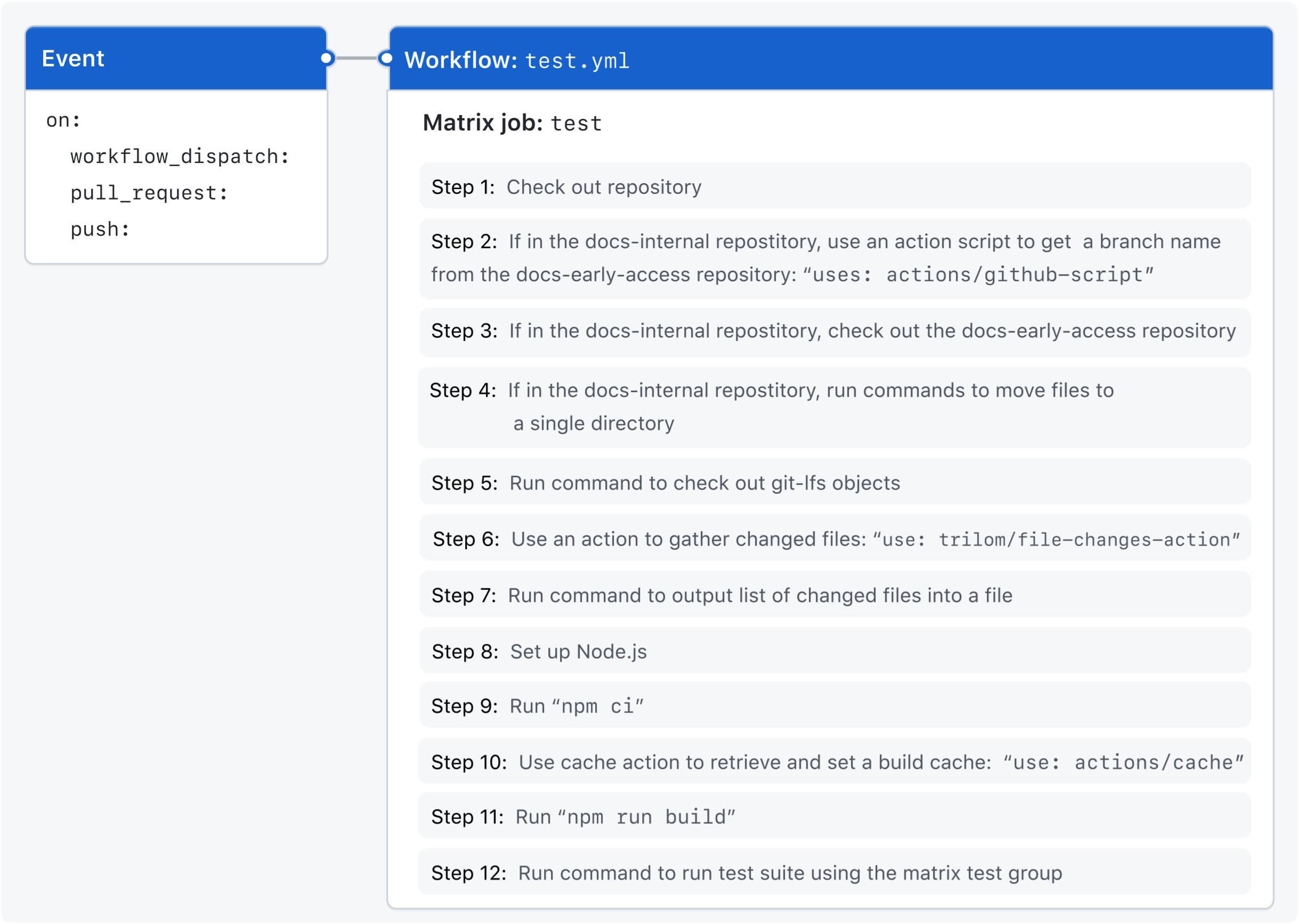

下图显示了工作流步骤的高级视图以及它们如何在作业中运行:
此示例中使用的功能
示例工作流演示了 GitHub Actions 的以下功能。
功能 | 实现 |
---|---|
从 UI 手动运行工作流 | workflow_dispatch |
触发工作流以自动运行 | pull_request |
定期运行工作流 | schedule |
设置令牌的权限 | permissions |
控制可同时运行的工作流或作业数 | concurrency |
根据存储库的不同,在不同的运行器上运行作业 | runs-on |
使用矩阵创建不同的测试配置 | matrix |
在运行器上安装 node | actions/setup-node |
缓存依赖项 | actions/cache |
在运行器上运行测试 | npm test |
示例工作流
GitHub Docs 工程团队创建了以下工作流。 工作流针对拉取请求中的代码运行测试。 若要查看 github/docs
存储库中此文件的最新版本,请参阅 test.yml
。
# 这定义工作流的名称,它将显示在 GitHub 存储库的“操作”选项卡中。 name: Node.js Tests # The `on` keyword lets you define the events that trigger when the workflow is run. You can define multiple events here. For more information, see "[AUTOTITLE](/actions/using-workflows/triggering-a-workflow#using-events-to-trigger-workflows)." on: # Add the `workflow_dispatch` event if you want to be able to manually run this workflow. For more information, see [`workflow_dispatch`](/actions/using-workflows/events-that-trigger-workflows#workflow_dispatch). workflow_dispatch: # Add the `pull_request` event, so that the workflow runs automatically every time a pull request is created or updated. For more information, see [`pull_request`](/actions/using-workflows/events-that-trigger-workflows#pull_request). pull_request: # Add the `push` event with the `branch` filter, so that the workflow runs automatically every time a commit is pushed to a branch called "main". For more information, see [`push`](/actions/using-workflows/events-that-trigger-workflows#push). push: branches: - main # This modifies the default permissions granted to `GITHUB_TOKEN`. This will vary depending on the needs of your workflow. For more information, see "[AUTOTITLE](/actions/using-jobs/assigning-permissions-to-jobs)." permissions: contents: read pull-requests: read # The `concurrency` key ensures that only a single workflow in the same concurrency group will run at the same time. For more information, see "[AUTOTITLE](/actions/using-jobs/using-concurrency)." # `concurrency.group` generates a concurrency group name from the workflow name and pull request information. The `||` operator is used to define fallback values. # `concurrency.cancel-in-progress` cancels any currently running job or workflow in the same concurrency group. concurrency: group: '${{ github.workflow }} @ ${{ github.event.pull_request.head.label || github.head_ref || github.ref }}' cancel-in-progress: true # This groups together all the jobs that run in the workflow file. jobs: # This defines a job with the ID `test` that is stored within the `jobs` key. test: # This configures the job to run on a GitHub-hosted runner or a self-hosted runner, depending on the repository running the workflow. # # In this example, the job will run on a self-hosted runner if the repository is named `docs-internal` and is within the `github` organization. If the repository doesn't match this path, then it will run on an `ubuntu-latest` runner hosted by GitHub. For more information on these options, see "[AUTOTITLE](/actions/using-jobs/choosing-the-runner-for-a-job)." runs-on: ${{ fromJSON('["ubuntu-latest", "self-hosted"]')[github.repository == 'github/docs-internal'] }} # This sets the maximum number of minutes to let the job run before it is automatically canceled. For more information, see [`timeout-minutes`](/actions/using-workflows/workflow-syntax-for-github-actions#jobsjob_idtimeout-minutes). timeout-minutes: 60 # This section defines the build matrix for your jobs. strategy: # Setting `fail-fast` to `false` prevents GitHub from cancelling all in-progress jobs if any matrix job fails. fail-fast: false # This creates a matrix named `test-group`, with an array of test groups. These values match the names of test groups that will be run by `npm test`. matrix: test-group: [ content, graphql, meta, rendering, routing, unit, linting, translations, ] # This groups together all the steps that will run as part of the `test` job. Each job in a workflow has its own `steps` section. steps: # The `uses` keyword tells the job to retrieve the action named `actions/checkout`. This is an action that checks out your repository and downloads it to the runner, allowing you to run actions against your code (such as testing tools). You must use the checkout action any time your workflow will use your repository's code. Some extra options are provided to the action using the `with` key. - name: Check out repo uses: actions/checkout@v4 with: lfs: ${{ matrix.test-group == 'content' }} persist-credentials: 'false' # If the current repository is the `github/docs-internal` repository, this step uses the `actions/github-script` action to run a script to check if there is a branch called `docs-early-access`. - name: Figure out which docs-early-access branch to checkout, if internal repo if: ${{ github.repository == 'github/docs-internal' }} id: check-early-access uses: actions/github-script@v6 env: BRANCH_NAME: ${{ github.head_ref || github.ref_name }} with: github-token: ${{ secrets.DOCUBOT_REPO_PAT }} result-encoding: string script: | const { BRANCH_NAME } = process.env try { const response = await github.repos.getBranch({ owner: 'github', repo: 'docs-early-access', BRANCH_NAME, }) console.log(`Using docs-early-access branch called '${BRANCH_NAME}'.`) return BRANCH_NAME } catch (err) { if (err.status === 404) { console.log(`There is no docs-early-access branch called '${BRANCH_NAME}' so checking out 'main' instead.`) return 'main' } throw err } # If the current repository is the `github/docs-internal` repository, this step checks out the branch from the `github/docs-early-access` that was identified in the previous step. - name: Check out docs-early-access too, if internal repo if: ${{ github.repository == 'github/docs-internal' }} uses: actions/checkout@v4 with: repository: github/docs-early-access token: ${{ secrets.DOCUBOT_REPO_PAT }} path: docs-early-access ref: ${{ steps.check-early-access.outputs.result }} # If the current repository is the `github/docs-internal` repository, this step uses the `run` keyword to execute shell commands to move the `docs-early-access` repository's folders into the main repository's folders. - name: Merge docs-early-access repo's folders if: ${{ github.repository == 'github/docs-internal' }} run: | mv docs-early-access/assets assets/images/early-access mv docs-early-access/content content/early-access mv docs-early-access/data data/early-access rm -r docs-early-access # This step runs a command to check out large file storage (LFS) objects from the repository. - name: Checkout LFS objects run: git lfs checkout # This step uses the `trilom/file-changes-action` action to gather the files changed in the pull request, so they can be analyzed in the next step. This example is pinned to a specific version of the action, using the `a6ca26c14274c33b15e6499323aac178af06ad4b` SHA. - name: Gather files changed uses: trilom/file-changes-action@a6ca26c14274c33b15e6499323aac178af06ad4b id: get_diff_files with: output: ' ' # This step runs a shell command that uses an output from the previous step to create a file containing the list of files changed in the pull request. - name: Insight into changed files run: | echo "${{ steps.get_diff_files.outputs.files }}" > get_diff_files.txt # This step uses the `actions/setup-node` action to install the specified version of the `node` software package on the runner, which gives you access to the `npm` command. - name: Setup node uses: actions/setup-node@v3 with: node-version: 16.14.x cache: npm # This step runs the `npm ci` shell command to install the npm software packages for the project. - name: Install dependencies run: npm ci # This step uses the `actions/cache` action to cache the Next.js build, so that the workflow will attempt to retrieve a cache of the build, and not rebuild it from scratch every time. For more information, see "[AUTOTITLE](/actions/using-workflows/caching-dependencies-to-speed-up-workflows)." - name: Cache nextjs build uses: actions/cache@v3 with: path: .next/cache key: ${{ runner.os }}-nextjs-${{ hashFiles('package*.json') }} # This step runs the build script. - name: Run build script run: npm run build # This step runs the tests using `npm test`, and the test matrix provides a different value for `${{ matrix.test-group }}` for each job in the matrix. It uses the `DIFF_FILE` environment variable to know which files have changed, and uses the `CHANGELOG_CACHE_FILE_PATH` environment variable for the changelog cache file. - name: Run tests env: DIFF_FILE: get_diff_files.txt CHANGELOG_CACHE_FILE_PATH: tests/fixtures/changelog-feed.json run: npm test -- tests/${{ matrix.test-group }}/
name: Node.js Tests
这定义工作流的名称,它将显示在 GitHub 存储库的“操作”选项卡中。
on:
The on
keyword lets you define the events that trigger when the workflow is run. You can define multiple events here. For more information, see "触发工作流程."
workflow_dispatch:
Add the workflow_dispatch
event if you want to be able to manually run this workflow. For more information, see workflow_dispatch
.
pull_request:
Add the pull_request
event, so that the workflow runs automatically every time a pull request is created or updated. For more information, see pull_request
.
push:
branches:
- main
Add the push
event with the branch
filter, so that the workflow runs automatically every time a commit is pushed to a branch called "main". For more information, see push
.
permissions:
contents: read
pull-requests: read
This modifies the default permissions granted to GITHUB_TOKEN
. This will vary depending on the needs of your workflow. For more information, see "为作业分配权限."
concurrency:
group: '${{ github.workflow }} @ ${{ github.event.pull_request.head.label || github.head_ref || github.ref }}'
cancel-in-progress: true
The concurrency
key ensures that only a single workflow in the same concurrency group will run at the same time. For more information, see "使用并发."
concurrency.group
generates a concurrency group name from the workflow name and pull request information. The ||
operator is used to define fallback values.
concurrency.cancel-in-progress
cancels any currently running job or workflow in the same concurrency group.
jobs:
This groups together all the jobs that run in the workflow file.
test:
This defines a job with the ID test
that is stored within the jobs
key.
runs-on: ${{ fromJSON('["ubuntu-latest", "self-hosted"]')[github.repository == 'github/docs-internal'] }}
This configures the job to run on a GitHub-hosted runner or a self-hosted runner, depending on the repository running the workflow.
In this example, the job will run on a self-hosted runner if the repository is named docs-internal
and is within the github
organization. If the repository doesn't match this path, then it will run on an ubuntu-latest
runner hosted by GitHub. For more information on these options, see "选择作业的运行器."
timeout-minutes: 60
This sets the maximum number of minutes to let the job run before it is automatically canceled. For more information, see timeout-minutes
.
strategy:
This section defines the build matrix for your jobs.
fail-fast: false
Setting fail-fast
to false
prevents GitHub from cancelling all in-progress jobs if any matrix job fails.
matrix:
test-group:
[
content,
graphql,
meta,
rendering,
routing,
unit,
linting,
translations,
]
This creates a matrix named test-group
, with an array of test groups. These values match the names of test groups that will be run by npm test
.
steps:
This groups together all the steps that will run as part of the test
job. Each job in a workflow has its own steps
section.
- name: Check out repo
uses: actions/checkout@v4
with:
lfs: ${{ matrix.test-group == 'content' }}
persist-credentials: 'false'
The uses
keyword tells the job to retrieve the action named actions/checkout
. This is an action that checks out your repository and downloads it to the runner, allowing you to run actions against your code (such as testing tools). You must use the checkout action any time your workflow will use your repository's code. Some extra options are provided to the action using the with
key.
- name: Figure out which docs-early-access branch to checkout, if internal repo
if: ${{ github.repository == 'github/docs-internal' }}
id: check-early-access
uses: actions/github-script@v6
env:
BRANCH_NAME: ${{ github.head_ref || github.ref_name }}
with:
github-token: ${{ secrets.DOCUBOT_REPO_PAT }}
result-encoding: string
script: |
const { BRANCH_NAME } = process.env
try {
const response = await github.repos.getBranch({
owner: 'github',
repo: 'docs-early-access',
BRANCH_NAME,
})
console.log(`Using docs-early-access branch called '${BRANCH_NAME}'.`)
return BRANCH_NAME
} catch (err) {
if (err.status === 404) {
console.log(`There is no docs-early-access branch called '${BRANCH_NAME}' so checking out 'main' instead.`)
return 'main'
}
throw err
}
If the current repository is the github/docs-internal
repository, this step uses the actions/github-script
action to run a script to check if there is a branch called docs-early-access
.
- name: Check out docs-early-access too, if internal repo
if: ${{ github.repository == 'github/docs-internal' }}
uses: actions/checkout@v4
with:
repository: github/docs-early-access
token: ${{ secrets.DOCUBOT_REPO_PAT }}
path: docs-early-access
ref: ${{ steps.check-early-access.outputs.result }}
If the current repository is the github/docs-internal
repository, this step checks out the branch from the github/docs-early-access
that was identified in the previous step.
- name: Merge docs-early-access repo's folders
if: ${{ github.repository == 'github/docs-internal' }}
run: |
mv docs-early-access/assets assets/images/early-access
mv docs-early-access/content content/early-access
mv docs-early-access/data data/early-access
rm -r docs-early-access
If the current repository is the github/docs-internal
repository, this step uses the run
keyword to execute shell commands to move the docs-early-access
repository's folders into the main repository's folders.
- name: Checkout LFS objects
run: git lfs checkout
This step runs a command to check out large file storage (LFS) objects from the repository.
- name: Gather files changed
uses: trilom/file-changes-action@a6ca26c14274c33b15e6499323aac178af06ad4b
id: get_diff_files
with:
output: ' '
This step uses the trilom/file-changes-action
action to gather the files changed in the pull request, so they can be analyzed in the next step. This example is pinned to a specific version of the action, using the a6ca26c14274c33b15e6499323aac178af06ad4b
SHA.
- name: Insight into changed files
run: |
echo "${{ steps.get_diff_files.outputs.files }}" > get_diff_files.txt
This step runs a shell command that uses an output from the previous step to create a file containing the list of files changed in the pull request.
- name: Setup node
uses: actions/setup-node@v3
with:
node-version: 16.14.x
cache: npm
This step uses the actions/setup-node
action to install the specified version of the node
software package on the runner, which gives you access to the npm
command.
- name: Install dependencies
run: npm ci
This step runs the npm ci
shell command to install the npm software packages for the project.
- name: Cache nextjs build
uses: actions/cache@v3
with:
path: .next/cache
key: ${{ runner.os }}-nextjs-${{ hashFiles('package*.json') }}
This step uses the actions/cache
action to cache the Next.js build, so that the workflow will attempt to retrieve a cache of the build, and not rebuild it from scratch every time. For more information, see "缓存依赖项以加快工作流程."
- name: Run build script
run: npm run build
This step runs the build script.
- name: Run tests
env:
DIFF_FILE: get_diff_files.txt
CHANGELOG_CACHE_FILE_PATH: tests/fixtures/changelog-feed.json
run: npm test -- tests/${{ matrix.test-group }}/
This step runs the tests using npm test
, and the test matrix provides a different value for ${{ matrix.test-group }}
for each job in the matrix. It uses the DIFF_FILE
environment variable to know which files have changed, and uses the CHANGELOG_CACHE_FILE_PATH
environment variable for the changelog cache file.
# 这定义工作流的名称,它将显示在 GitHub 存储库的“操作”选项卡中。
name: Node.js Tests
# The `on` keyword lets you define the events that trigger when the workflow is run. You can define multiple events here. For more information, see "[AUTOTITLE](/actions/using-workflows/triggering-a-workflow#using-events-to-trigger-workflows)."
on:
# Add the `workflow_dispatch` event if you want to be able to manually run this workflow. For more information, see [`workflow_dispatch`](/actions/using-workflows/events-that-trigger-workflows#workflow_dispatch).
workflow_dispatch:
# Add the `pull_request` event, so that the workflow runs automatically every time a pull request is created or updated. For more information, see [`pull_request`](/actions/using-workflows/events-that-trigger-workflows#pull_request).
pull_request:
# Add the `push` event with the `branch` filter, so that the workflow runs automatically every time a commit is pushed to a branch called "main". For more information, see [`push`](/actions/using-workflows/events-that-trigger-workflows#push).
push:
branches:
- main
# This modifies the default permissions granted to `GITHUB_TOKEN`. This will vary depending on the needs of your workflow. For more information, see "[AUTOTITLE](/actions/using-jobs/assigning-permissions-to-jobs)."
permissions:
contents: read
pull-requests: read
# The `concurrency` key ensures that only a single workflow in the same concurrency group will run at the same time. For more information, see "[AUTOTITLE](/actions/using-jobs/using-concurrency)."
# `concurrency.group` generates a concurrency group name from the workflow name and pull request information. The `||` operator is used to define fallback values.
# `concurrency.cancel-in-progress` cancels any currently running job or workflow in the same concurrency group.
concurrency:
group: '${{ github.workflow }} @ ${{ github.event.pull_request.head.label || github.head_ref || github.ref }}'
cancel-in-progress: true
# This groups together all the jobs that run in the workflow file.
jobs:
# This defines a job with the ID `test` that is stored within the `jobs` key.
test:
# This configures the job to run on a GitHub-hosted runner or a self-hosted runner, depending on the repository running the workflow.
#
# In this example, the job will run on a self-hosted runner if the repository is named `docs-internal` and is within the `github` organization. If the repository doesn't match this path, then it will run on an `ubuntu-latest` runner hosted by GitHub. For more information on these options, see "[AUTOTITLE](/actions/using-jobs/choosing-the-runner-for-a-job)."
runs-on: ${{ fromJSON('["ubuntu-latest", "self-hosted"]')[github.repository == 'github/docs-internal'] }}
# This sets the maximum number of minutes to let the job run before it is automatically canceled. For more information, see [`timeout-minutes`](/actions/using-workflows/workflow-syntax-for-github-actions#jobsjob_idtimeout-minutes).
timeout-minutes: 60
# This section defines the build matrix for your jobs.
strategy:
# Setting `fail-fast` to `false` prevents GitHub from cancelling all in-progress jobs if any matrix job fails.
fail-fast: false
# This creates a matrix named `test-group`, with an array of test groups. These values match the names of test groups that will be run by `npm test`.
matrix:
test-group:
[
content,
graphql,
meta,
rendering,
routing,
unit,
linting,
translations,
]
# This groups together all the steps that will run as part of the `test` job. Each job in a workflow has its own `steps` section.
steps:
# The `uses` keyword tells the job to retrieve the action named `actions/checkout`. This is an action that checks out your repository and downloads it to the runner, allowing you to run actions against your code (such as testing tools). You must use the checkout action any time your workflow will use your repository's code. Some extra options are provided to the action using the `with` key.
- name: Check out repo
uses: actions/checkout@v4
with:
lfs: ${{ matrix.test-group == 'content' }}
persist-credentials: 'false'
# If the current repository is the `github/docs-internal` repository, this step uses the `actions/github-script` action to run a script to check if there is a branch called `docs-early-access`.
- name: Figure out which docs-early-access branch to checkout, if internal repo
if: ${{ github.repository == 'github/docs-internal' }}
id: check-early-access
uses: actions/github-script@v6
env:
BRANCH_NAME: ${{ github.head_ref || github.ref_name }}
with:
github-token: ${{ secrets.DOCUBOT_REPO_PAT }}
result-encoding: string
script: |
const { BRANCH_NAME } = process.env
try {
const response = await github.repos.getBranch({
owner: 'github',
repo: 'docs-early-access',
BRANCH_NAME,
})
console.log(`Using docs-early-access branch called '${BRANCH_NAME}'.`)
return BRANCH_NAME
} catch (err) {
if (err.status === 404) {
console.log(`There is no docs-early-access branch called '${BRANCH_NAME}' so checking out 'main' instead.`)
return 'main'
}
throw err
}
# If the current repository is the `github/docs-internal` repository, this step checks out the branch from the `github/docs-early-access` that was identified in the previous step.
- name: Check out docs-early-access too, if internal repo
if: ${{ github.repository == 'github/docs-internal' }}
uses: actions/checkout@v4
with:
repository: github/docs-early-access
token: ${{ secrets.DOCUBOT_REPO_PAT }}
path: docs-early-access
ref: ${{ steps.check-early-access.outputs.result }}
# If the current repository is the `github/docs-internal` repository, this step uses the `run` keyword to execute shell commands to move the `docs-early-access` repository's folders into the main repository's folders.
- name: Merge docs-early-access repo's folders
if: ${{ github.repository == 'github/docs-internal' }}
run: |
mv docs-early-access/assets assets/images/early-access
mv docs-early-access/content content/early-access
mv docs-early-access/data data/early-access
rm -r docs-early-access
# This step runs a command to check out large file storage (LFS) objects from the repository.
- name: Checkout LFS objects
run: git lfs checkout
# This step uses the `trilom/file-changes-action` action to gather the files changed in the pull request, so they can be analyzed in the next step. This example is pinned to a specific version of the action, using the `a6ca26c14274c33b15e6499323aac178af06ad4b` SHA.
- name: Gather files changed
uses: trilom/file-changes-action@a6ca26c14274c33b15e6499323aac178af06ad4b
id: get_diff_files
with:
output: ' '
# This step runs a shell command that uses an output from the previous step to create a file containing the list of files changed in the pull request.
- name: Insight into changed files
run: |
echo "${{ steps.get_diff_files.outputs.files }}" > get_diff_files.txt
# This step uses the `actions/setup-node` action to install the specified version of the `node` software package on the runner, which gives you access to the `npm` command.
- name: Setup node
uses: actions/setup-node@v3
with:
node-version: 16.14.x
cache: npm
# This step runs the `npm ci` shell command to install the npm software packages for the project.
- name: Install dependencies
run: npm ci
# This step uses the `actions/cache` action to cache the Next.js build, so that the workflow will attempt to retrieve a cache of the build, and not rebuild it from scratch every time. For more information, see "[AUTOTITLE](/actions/using-workflows/caching-dependencies-to-speed-up-workflows)."
- name: Cache nextjs build
uses: actions/cache@v3
with:
path: .next/cache
key: ${{ runner.os }}-nextjs-${{ hashFiles('package*.json') }}
# This step runs the build script.
- name: Run build script
run: npm run build
# This step runs the tests using `npm test`, and the test matrix provides a different value for `${{ matrix.test-group }}` for each job in the matrix. It uses the `DIFF_FILE` environment variable to know which files have changed, and uses the `CHANGELOG_CACHE_FILE_PATH` environment variable for the changelog cache file.
- name: Run tests
env:
DIFF_FILE: get_diff_files.txt
CHANGELOG_CACHE_FILE_PATH: tests/fixtures/changelog-feed.json
run: npm test -- tests/${{ matrix.test-group }}/
后续步骤
- 若要了解 GitHub Actions 概念,请参阅“了解 GitHub Actions”。
- 有关创建基本工作流的分步指南,请参阅“GitHub Actions 快速入门”。
- 如果你熟悉 GitHub Actions 的基础知识,可以在“关于工作流程”中了解工作流及其功能。
